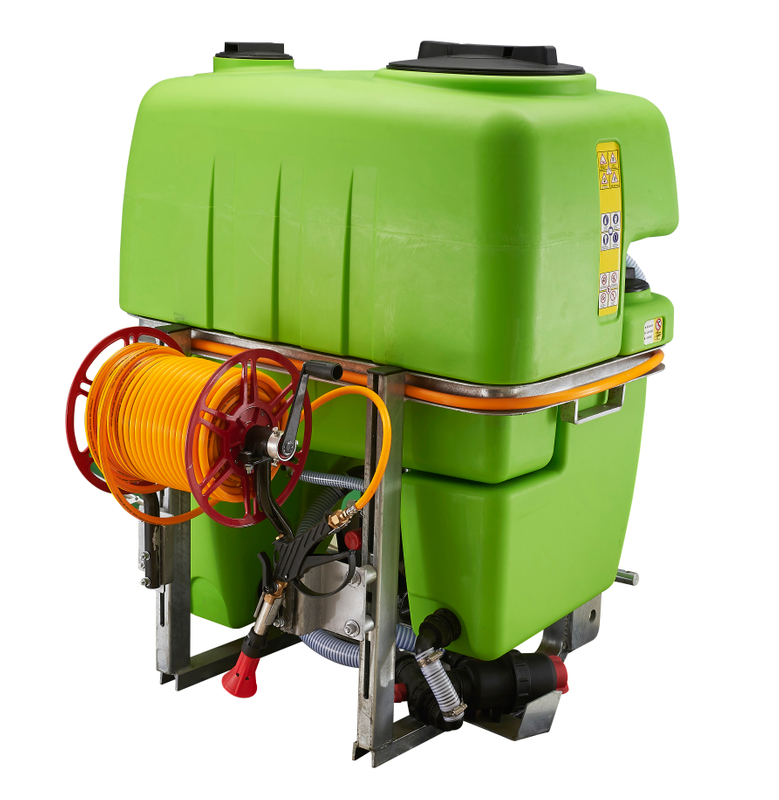

This series of air-supplied sprayer adopts airflow to transport droplets, so its penetrability and adhesion rate are very good. It is an agricultural and forestry spraying machine with the advantages of long range, large operating range, strong penetrability, good atomization effect, simple maintenance and long service life.It is suitable for the pest control of large area orchard such as apple, pear and peach, and also for the pest control of hedge frame and trellises crops such as grapes and vegetables.

1. liquid pump for diaphragm pump, high pressure, stable flow, dehydration operation, long service life.

2. the fan adopts spiral slurry plasticized blade, plastic hood, strong wind, high range (far), good penetration.

3. Adopt double-head anti-drip conical spray nozzle, spray droplets are evenly distributed, which can easily change and adjust the spray volume (1.2 and 1.5 spray holes), and can close a single spray nozzle according to the target demand, and has good anti-drip performance.Special ceramic spray sheet is resistant to high pressure and corrosion.

4. nozzle for stainless steel pipe, never rust.

5. Medicine cabinet adopts unique combination medicine cabinet design, which is divided into main medicine cabinet, cleaning cabinet and hand washing cabinet. It has fashionable appearance, strong and durable, and is resistant to various pesticide corrosion.

6. The machine has reasonable structure, simple operation, convenient maintenance, light weight and convenient connection with three-point suspension mechanism after tractor.High operation efficiency, low labor intensity, good prevention and control effect.

project	parameter
model	FXS8B-880
Form a complete set of power	P 75 HP
Yuexiang capacity	800L
Spray range	10 m or more
Nozzle number	14pcs
Pump flow	78L/min
Pressure of work	0-4Mpa
The fan diameter	800mm
The net weight	317kgs
Overall dimensions	163 * 143.5 * 1600 cm

XQJ50/340
